Product Description:
The Z-type bucket elevator is an inflow type feeding material. The material flows into the hopper and is lifted to the advanced level by the plate chain, and the material is discharged by the material gravity.
This bucket elevator has many specifications and a large amount of lifting. The production capacity is high and the energy consumption is low. The machine adopts a fully-sealed casing with a low chain speed and almost no returning phenomenon, so the reactive power loss is low, the noise is low, and the service life is long.

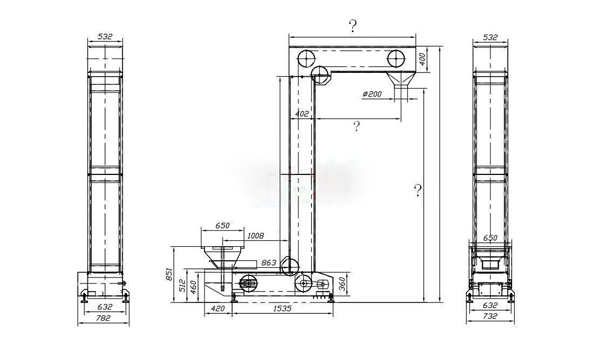

Working Principle:
Feature of Product:
1. Good sealing and less environmental pollution.
2. Convenient operation and maintenance, and less wearing parts.
3. Low cost of use.
4. Reliability, good sealing and less environmental pollution.
5. High precision, good rigidity and beautiful appearance.
6. Small mechanical size and large conveying capacity.
7. easy to operate, less maintenance, less wearing parts.
Technical Parameters
| Model | ZD-160 | ZD-250 | ZD-330 | ZD-400 | ZD-500 | ZD-530 | ZD-650 | ZD-800 |
| Capacity(m3/h) | 1.2-4.8 | 4.6-15.7 | 6.0-10.0 | 15.2-25.2 | 25.4-45.3 | 20-33.4 | 32.9-54.9 | 40.6-67.6 |
How to buy a bucket elevator?
TH Chain Bucket elevator is a kind customized products,as a professional manufacturer,we can special customized for belt width,belt length,the angle of conveyor and others requirements.If you want to get an program only for you,pls give us those information:
1.The name of raw material?
2.How much is your capacity hourly?
3.The heighty of elevating?
4.The motor of machine?
