Inclined belt conveyor be widely used in food industry,mining industry,coal industry and others.

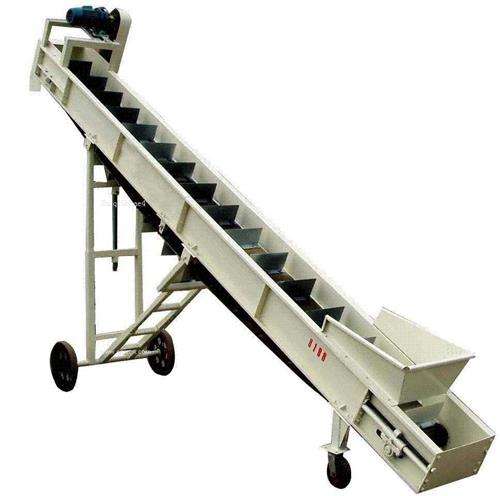

Inclined belt conveyor
Category: Belt conveyor
Description: Inclined belt conveyor be widely used in food industry,mining industry,coal industry and others.
Product Description
DY type Inclined belt conveyor is a high efficiency, good mobility Alto continuous conveyor handling equipment, mainly used for loading and unloading sites constantly changing situations, such as: ports, terminals, stations, coal yards, warehouses, construction sites, sand quarry, farm, etc., and for short-distance transport and handling of bulk materials or piece weight 100 kg following items into.Inclined belt conveyor can be divided into lifting and can not lift two categories, the conveyor is in motion by an electric drum drive, elevating machine and operation are non-motorized.
Technical Parameters
| Model |
Belt Width mm |
Conveying Length mm |
Idling m/s |
Capacity | lifting | Road Wheel |
Overall dimensions mm |
||||
| roll | Slot roller | ||||||||||
| pc/h | t/h | t/h | A | B | C | ||||||
| DY4031 |
400 |
3 |
Roll 0.8 Slot roller 1.6 |
800 |
40 |
80 |
1.2 |
No return |
3342 | 880 | 1255 |
| DY4051 | 5 | 5392 | 880 | 1227 | |||||||
| DY4071 | 7 | 1.3 | 7403 | 880 | 1329 | ||||||
| DY40101 | 10 | 10420 | 880 | 1323 | |||||||
| DY5051 |
500 |
5 |
1400 |
70 |
145 |
1.6 | 5465 | 980 | 1669 | ||
| DY5071 | 7 | 7513 | 980 | 1620 | |||||||
| DY50101 | 10 | 1.77 | 11308 | 1290 | 1802 | ||||||
| DY50151 | 15 | 1.6 | 16350 | 1290 | 1802 | ||||||
| DY6551 |
650 |
5 |
2600 |
130 |
265 |
1.5 | 5494 | 1150 | 1590 | ||
| DY6571 | 7 | 7523 | 1150 | 1554 | |||||||
| DY65101 | 10 | 1.8 | 11308 | 1460 | 1852 | ||||||
| DY65151 | 15 | 1.85 | 16340 | 1460 | 1884 | ||||||
How to purchase our belt conveyor?
Belt conveyor is a kind customized products,as a professional manufacturer,we can special customized for belt width,belt length,the angle of conveyor and others requirements.If you want to get an program only for you,pls give us those information:
1.The name of raw material?
2.The width of belt or tell us that how much is your capacity hourly?
3.The length of belt?
4.The angle of conveyor machine?
If you are interested our product,pls contact us without any hesitate!!!
