Waved edge belt conveyor are mainly used for large inclination bulk materials continuous conveyor.

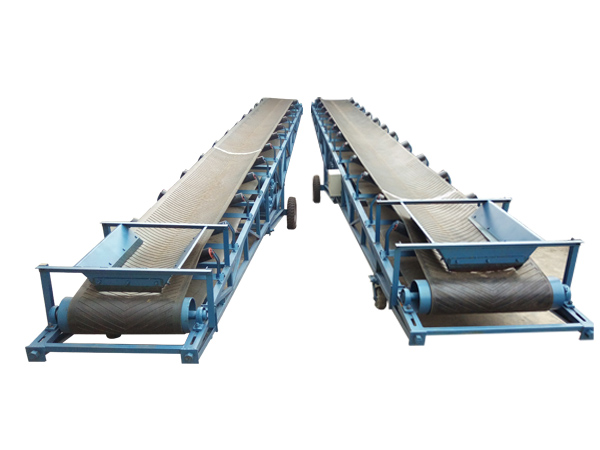

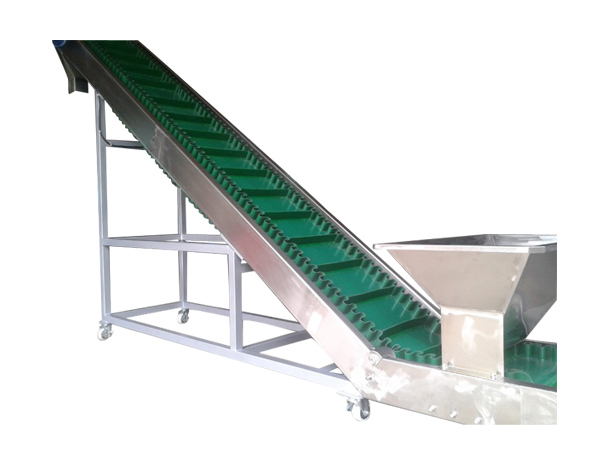

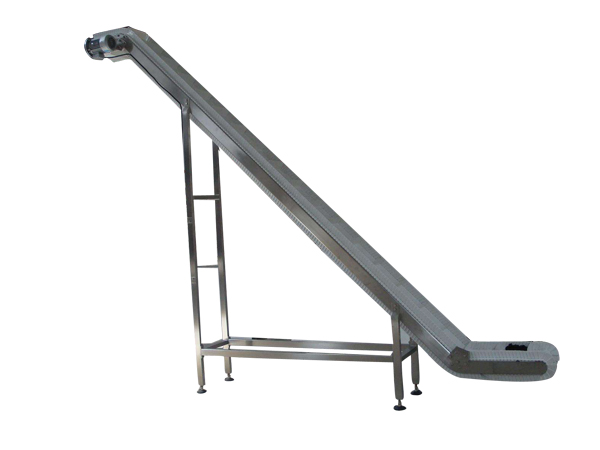

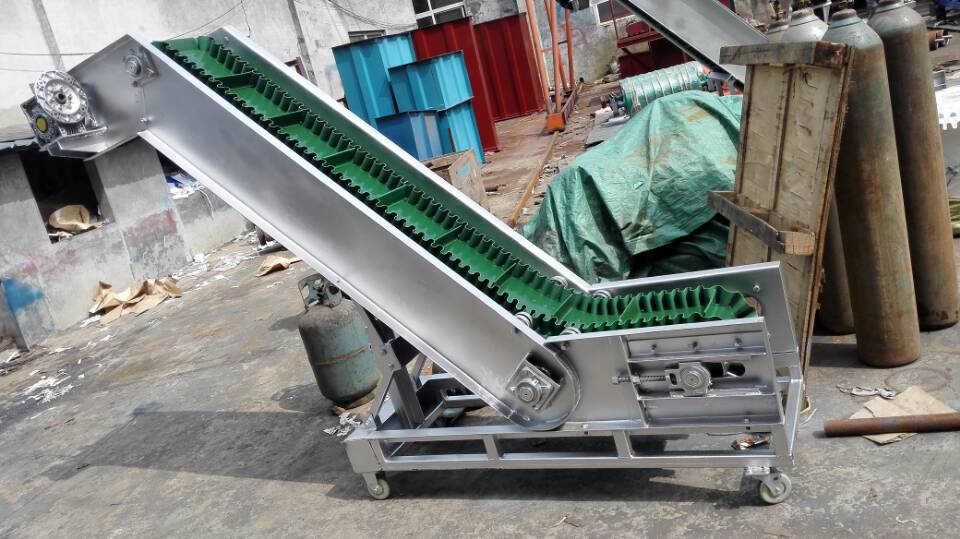

Waved edge belt conveyor
Category: Belt conveyor
Description: Waved edge belt conveyor are mainly used for large inclination bulk materials continuous conveyor.
Product Description
Waved edge belt conveyor are mainly used for large inclination bulk materials continuous conveyor, conveyor belt having corrugated wall and a transverse partition, transmission angle is 0-90 ° (70 ° or less is best), which is characterized by: using a the device can complete oblique horizontal conveyor in a small space, and having a common horizontal or low-angle belt conveyor high delivery reliability, energy efficiency and bucket elevator lifting material reliable economy advantages.Waved edge belt conveyor are widely used in coal, food, building materials, chemicals, water, electricity, metallurgy and other sectors, at an ambient temperature of -19 ° c- + 40 ° c range transport within a bulk density of 0.5-2.5t / m³ of . There are special requirements for the delivery of materials, such as a refractory material or with acid, alkali, oils, organic solvents and other ingredients must be made when ordering,we will use special ribs corresponding material conveyor belt.
| Belt Width B (mm) | 400 | 500 | 650 | 800 | 1000 | 1200 | 1400 | |||||||||
| High guard H (mm) | 60 | 80 | 80 | 120 | 120 | 160 | 160 | 200 | 160 | 240 | 200 | 300 | 240 | 400 | ||
| minimum horizontal baffle spacing | 100 | 120 | 120 | 160 | 160 | 200 | 200 | 250 | 200 | 280 | 250 | 350 | 280 | 400 | ||
|
Throughput (raw coal,idling 1m/s) M³/h |
30° | 28 | 36 | 50 | 71 | 104 | 120 | 157 | 195 | 216 | 327 | 331 | 466 | 500 | 794 | |
| 45° | 19 | 25 | 33 | 57 | 83 | 97 | 127 | 157 | 175 | 271 | 267 | 384 | 414 | 680 | ||
| 60° | 15 | 19 | 23 | 40 | 58 | 69 | 90 | 112 | 124 | 197 | 190 | 278 | 302 | 524 | ||
| 90° | 9 | 11 | 15 | 21 | 31 | 37 | 48 | 60 | 66 | 106 | 102 | 149 | 162 | 281 | ||
| Overall dimensions | High head belting leather surface H1 |
1200 |
1350 |
1615 |
1815 |
2000、2200 |
2300、2525 |
2525、2700 |
||||||||
| High end belting leather surface H2 |
690 |
800 |
950 |
1115 |
1250、1400 |
1600、1700 |
1600、1700 |
|||||||||
| High middle section of belt surface H3 |
700 |
800 |
850 |
1115 |
850、1200 |
1400、1500 |
1600、1700 |
|||||||||
| middle period of anchor wide B1 |
580 |
850 |
1020 |
1220 |
1440 |
1690 |
1890 |
|||||||||
How to purchase our belt conveyor?
Waved edge Belt conveyor is a kind customized products,as a professional manufacturer,we can special customized for belt width,belt length,the angle of conveyor and others requirements.If you want to get an program only for you,pls give us those information:
1.The name of raw material?
2.The width of belt or tell us that how much is your capacity hourly?
2.The width of belt or tell us that how much is your capacity hourly?
3.The length of belt?
4.The angle of conveyor machine?
If you are interested our product,pls contact us without any hesitate!!!
